Wireless Scale

Design

The scale was modelled using onshape to house the loadcell and microcontroller [OnShape CAD model].

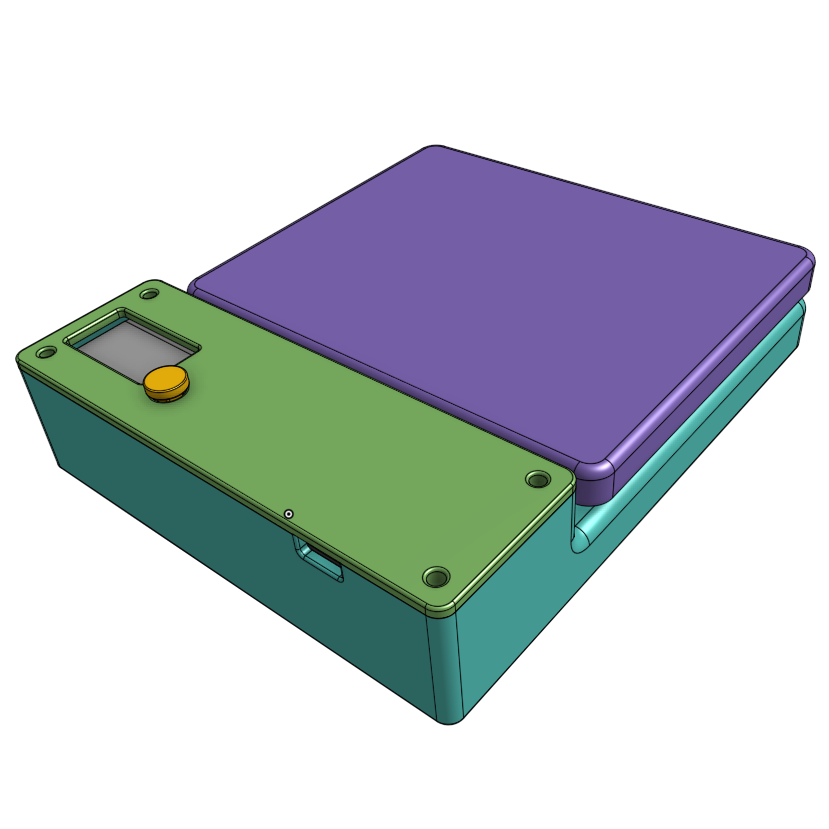

OnShape Model

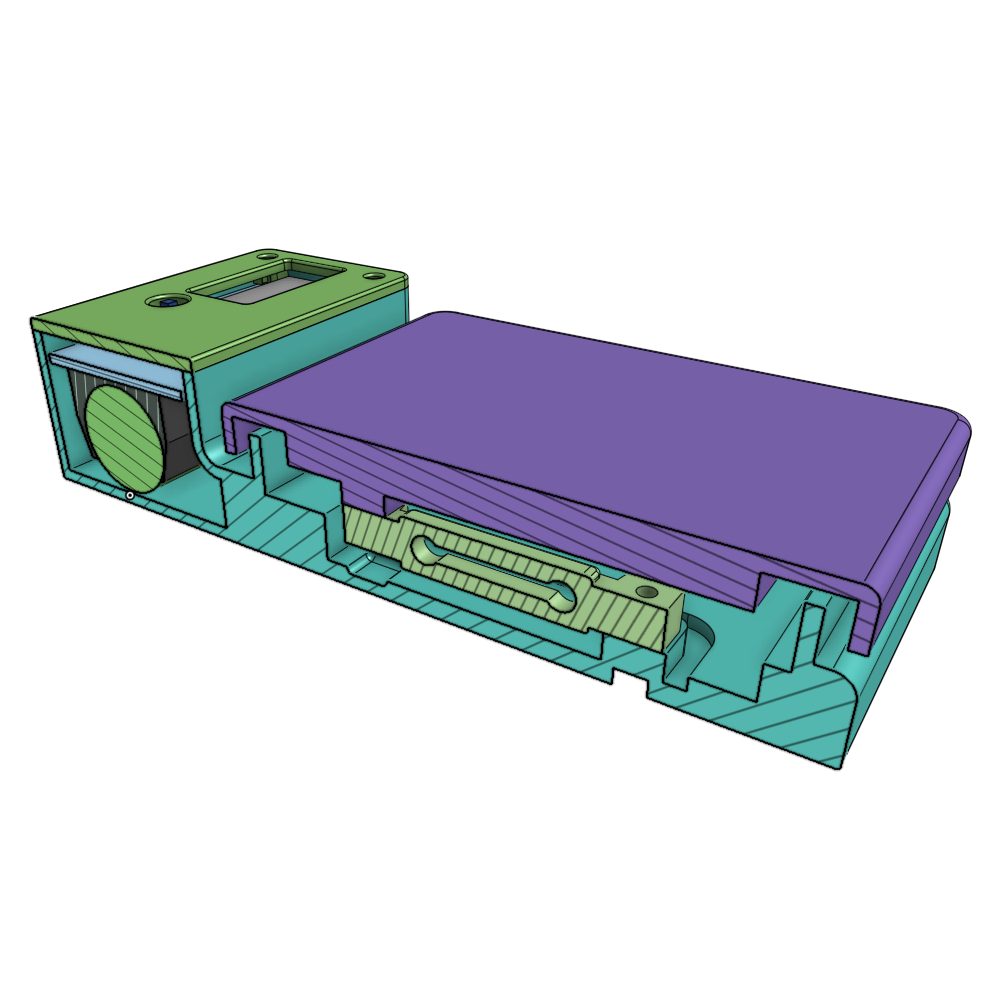

Section view

Parts

The main non-printed parts used are:

• ESP8266 board with integrated OLED, battery & buttons
• HX711 load cell amplifier
• Sparkfun 500g mini load cell [Product page][Datasheet]

The Arduino compatible ESP8266 board used included an onboard battery holder, charger, OLED screen and 5-way button. See notes in the Setup section about pins and programming.

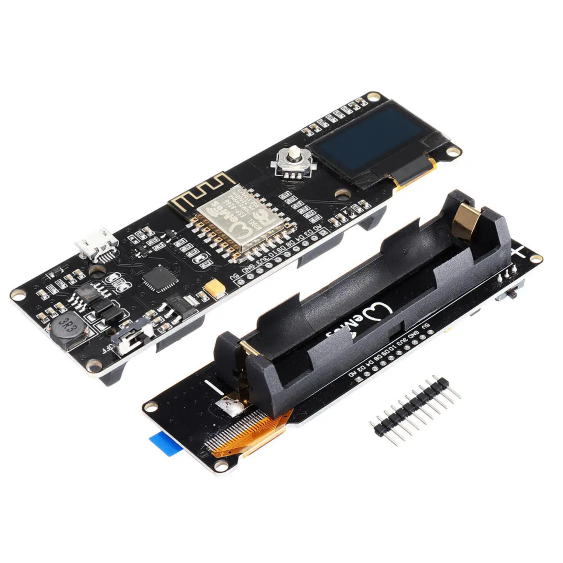

ESP8266 with OLED and battery

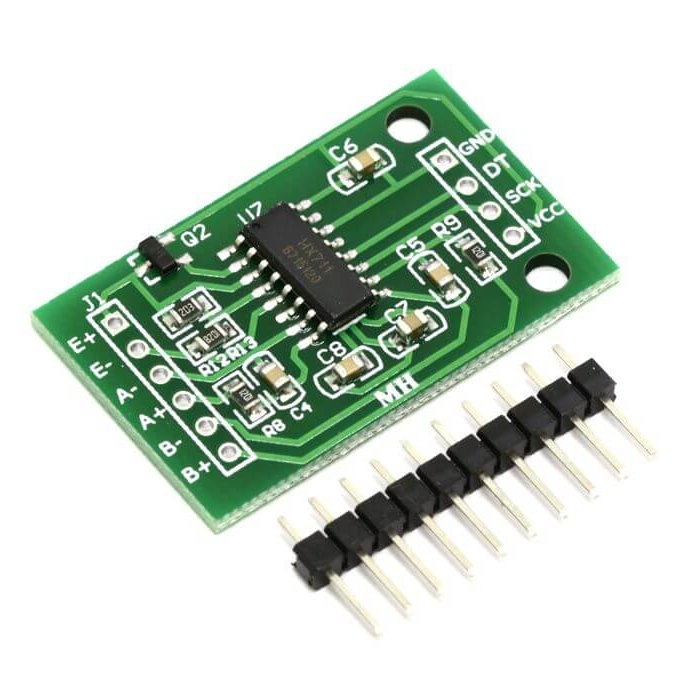

HX711 amplifier

Sparkfun load cell

Wiring

The approximate wiring is shown here although the board used had an integrated OLED screen and 5-way button. The wiring was shown with separate parts for clarity on pin usage.

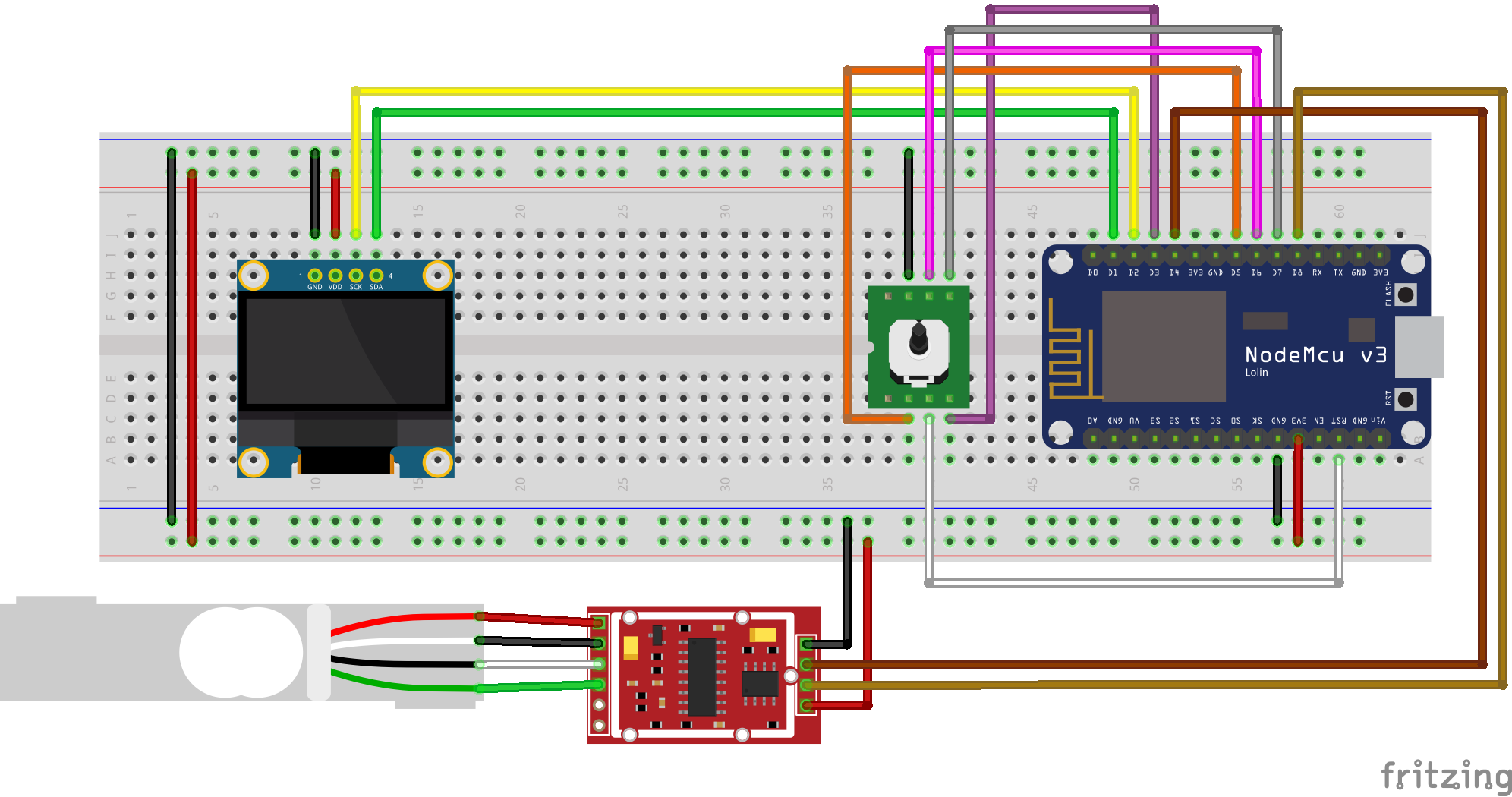

Fritzing wiring diagram for scale
